Temperature Screening & Access Controller

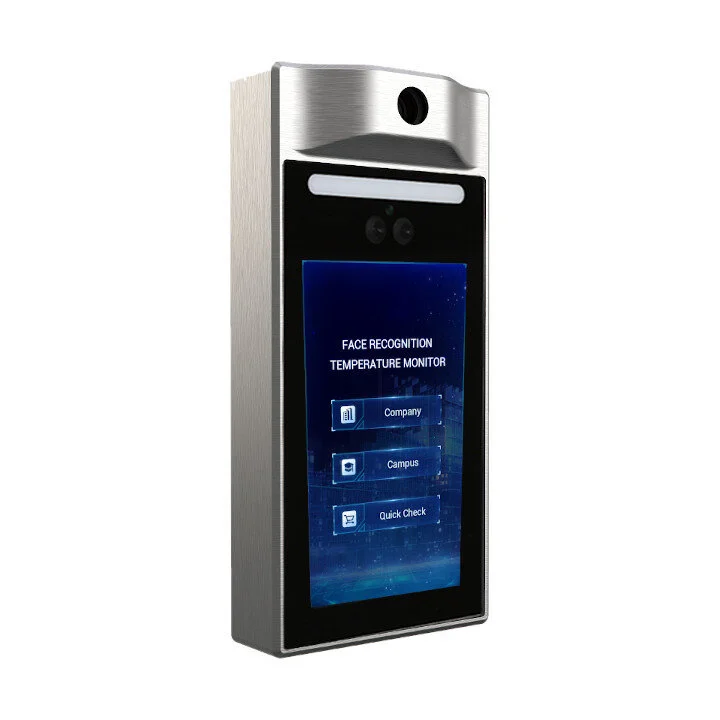

AI-321 Single Person Kiosk



Thermal imaging cameras are the most effective, accurate and efficient means of rapidly measuring and detecting elevated temperatures.

Uses AI-321 to get single person accurate temperature readings and facial recognition in milliseconds.

Application Scenarios

  • Nursing Homes

  • Retail

  • Casinos

  • Convenience Stores

  • Schools

  • Restaurants

  • Offices

  • Airports



Key Features


Quick Measurement

30 person/min


Accurate to ±0.54°


Single Person Measurement


Contact-Free

more protection


Remote Access


Questionnaire on device


Instant Alert

with video and audio


Mask Detection & Reminders


Facial Recognition

Library >50,000 records


Data Analysis & Reporting

Technology



Hardware

IR Sensor: Single point IR sensor

System: Android

RAM: 16G EMMC

Image sensor: 1/2.7" CMOS

Lens: 2.9mm

Monitor resolution: 1280*720, 7" TFT (16: 9)

Measurement Speed: 30 person/min

RGB Camera Parameters

Camera: Binocular camera supports live detection

Effective pixel: 2Mega pixel, 1920*1080

Min. lux: Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2

SNR: ≥50db(AGC OFF)

WDR: ≥80db

Face Recognition

Distance: 1-4 Ft

View angle: Vertical ±30 degree

Reco. Time: < 1s

On equipment face library: 50k entries

Visiting Record: 100k entries

Temperature Measuring

Range: 86-107 (°F)

Accuracy ±0.9 (°F)

Best Distance: 0.7-1.7 Ft

Response time < 1s

Interface

RJ45 10M/100M Ethernet

Audio: line out

USB-A and micro USB;

WIFI+BLE4.0

General

Power input DC 12V/3A

Power consumption 20W(MAX)

Working temperature -4 °F ~ +122 °F

Humidity 5 ~ 90%, no condense

Dimension: 10.6x5.3x1.8

Weight: N/A
